I wonder if it is possible at all to set transparency levels based on the scale. I thought I was overlooking something very simple but perhaps it is not that simple since I am still trying to figure out scale dependable transparency.

Essentially, I want to have a polygon showing  solid from far away but 10% transparent when zoomed close in.

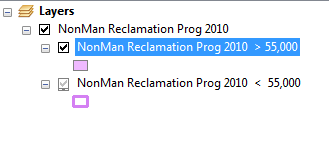

Currently, I have to add the layer twice and apply one scale for the solid and the opposite for the hollow (or  10% transparency)

[cid:image001.png at 01CFDBEB.9A59FD20]

Thanks for any input.

Jorge



Engineer IV
Beaches, Mines and ERP Support Program
Division of Water Resource Management
Florida Department of Environmental Protection
jorge.lagos at dep.state.fl.us<mailto:jorge.lagos at dep.state.fl.us>
850-245-8629 Ext:58629
MS #3590; BMC 659 D
