shrug-l: USNG, ArcMap 10

Griffin, Jason jgriffin at co.pinellas.fl.us
Tue Jun 7 08:36:01 EDT 2011


It's Hurricane season, and if you have ArcMap 10 this year you can quickly map US National Grid Data!

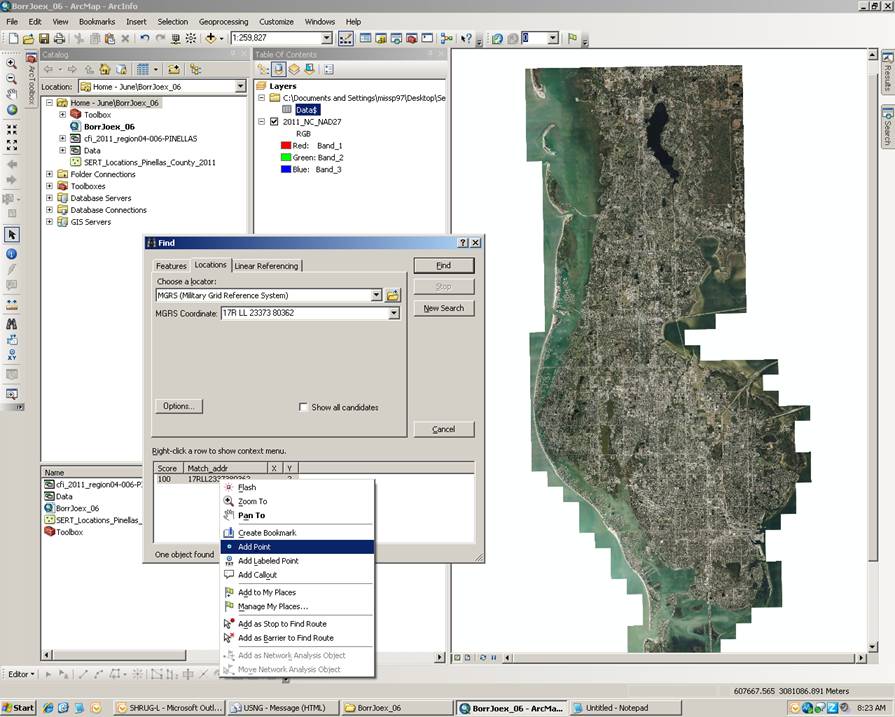

First use the Find tool (binoculars icon) and switch the locater to MGRS, then enter a test location and hit find...

[cid:image002.png at 01CC24EC.65DD3760]

...If you have received some data from SERT you can just cut and paste a value here to test it out (USNG=MGRS).

[cid:image001.jpg at 01CC24ED.EE5293A0]

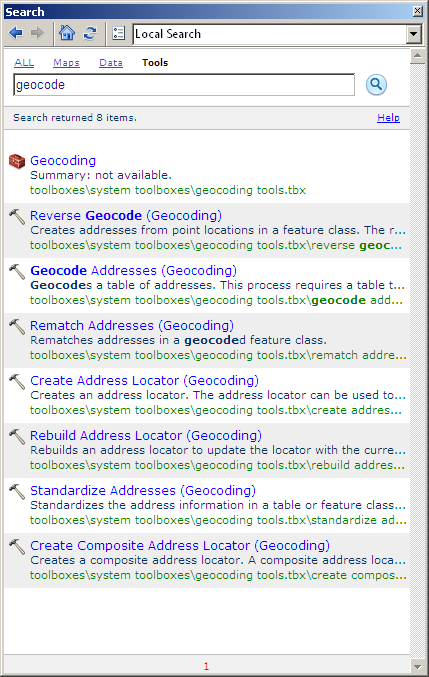

Ok, so that works great for a point, but I've got a whole bunch of data to map.  Use the Search window to search for "geocode" under the tools category.

[cid:image005.png at 01CC24EC.CC156DE0]

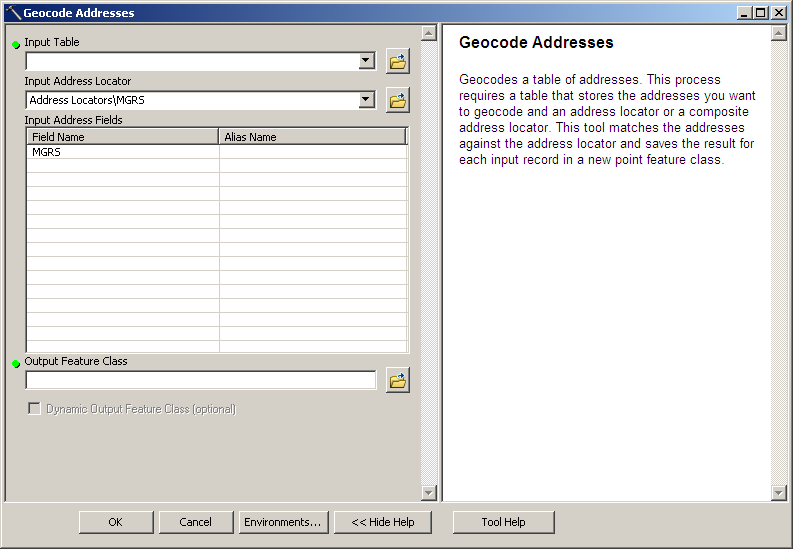

Choose Geocode from the list, and since we set the find tool to use MGRS the Geocode Addresses has the locater already listed!

[cid:image006.png at 01CC24EC.CC156DE0]

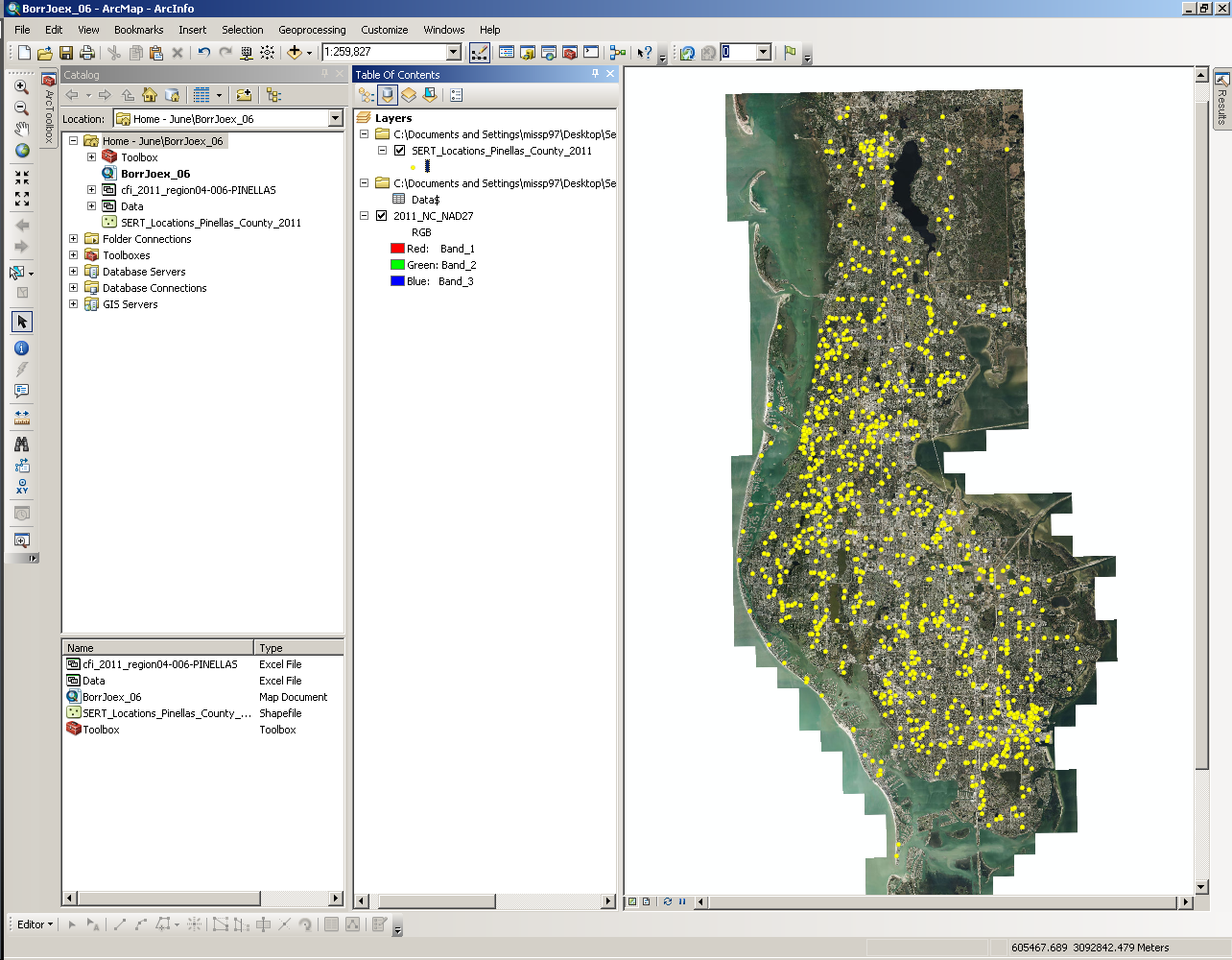

Map your fields as appropriate and you are done:

[cid:image007.png at 01CC24ED.54F01110]

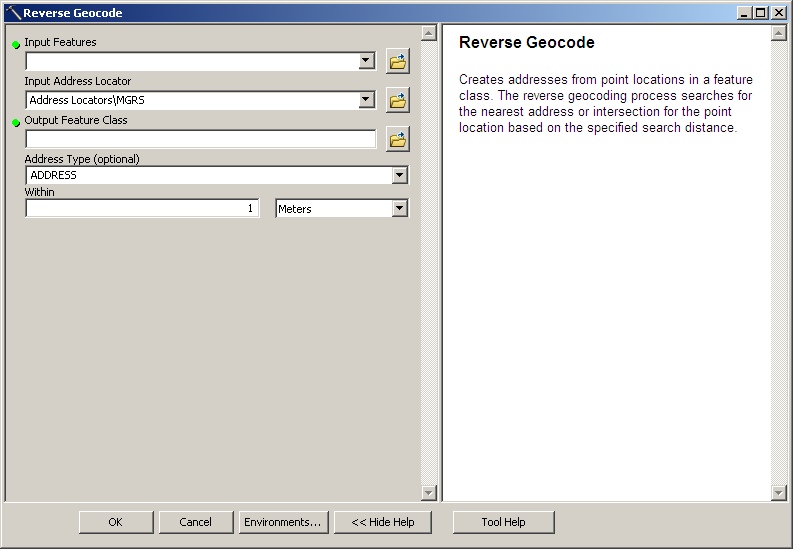

...Now, conversely if you have to provide any data to FEMA/SERT/Etc. using USNG just take your point locations and use the Reverse Geocode, and done!

[cid:image008.png at 01CC24ED.B46C7E80]

Have a safe hurricane season,

Jason A. Griffin, Ext. 33613 | BTS Senior Technology Specialist, GIS Dev. | Pinellas County Government, Business Technology Services [BTS] | 400 S Ft. Harrison Ave | Clearwater, FL  33756 | Tel: 727-453-3613 | Cell: 850-408-6743 | JGriffin at co.pinellas.fl.us<mailto:JGriffin at co.pinellas.fl.us>|
